51 71... Removing And Installing/Replacing Left Or Right Reinforcement Cover (All-Wheel Drive Vehicle)
Necessary preliminary tasks
- Partially undo diesel enclosure, remove if necessary

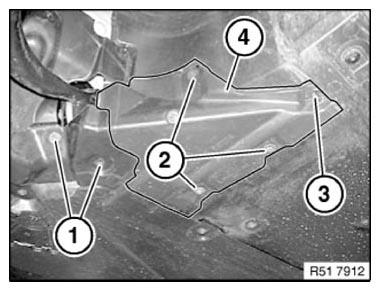

Undo screws (1) on front underbody protection.
Release screws (2) and nuts (3).
Tightening torque 51 75 1AZ .
Remove reinforcement cover (4).
Installation note:
Ensure reinforcement cover (4) is properly secured.
