51 41 030 Removing And Installing/Replacing Decorative Strip On Front Left Or Right Door Trim Panel

Special tools required:

Starting at rear, release decorative strip (1) with special tool 00 9 317 from clips (2).

Remove decorative strip (1) towards rear.

Installation:

Clips (2) on decorative strip (1) must not be damaged.

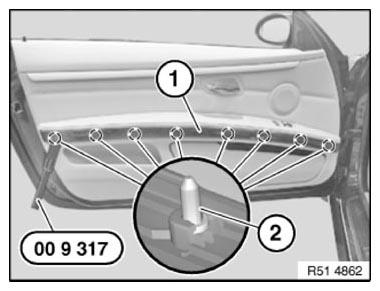

Fig 1: Removing Decorative Strip Using Special Tool 00 9 317 From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Released or damaged Hutfix clips (1) must be replaced.

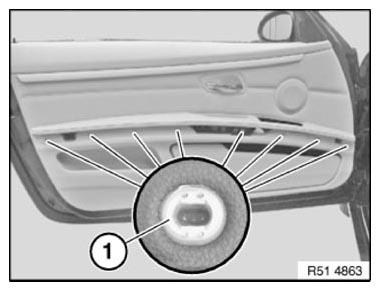

Fig 2: Hutfix Clips

Courtesy of BMW OF NORTH AMERICA, INC.
