51 21 330 Removing And Installing/Replacing Window Cavity Cover Strip On Inner Front Door
IMPORTANT:
The "INSTRUCTIONS ON FITTING WINDOW GUIDES " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks
- Remove outer WINDOW CAVITY COVER STRIP
- Remove FRONT DOOR TRIM

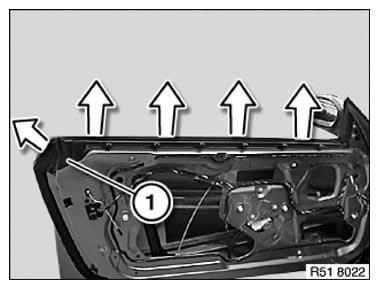

Pop window cavity cover strip (1) in direction of arrow out of front door.
Installation:
Molded section (1) and retaining elements (2) of window cavity cover strip (3) must not be damaged.
Molded section (1) must be correctly fed into door.
Moisten window cavity cover strip (3) prior to fitting with APPROVED ANTI-FRICTION AGENT .
Installation:
Make sure window cavity cover strip (1) is installed in correct position on door (2) and door window glass (3).
