51 21 180 Removing And Installing/Replacing Cover On Outside Handle

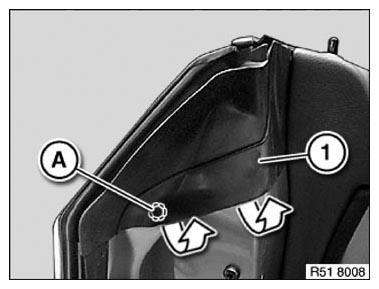

Lever out seal (1) and release screw in area (A).

Installation:

Make sure seal (1) is correctly seated on door.

Fig 1: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

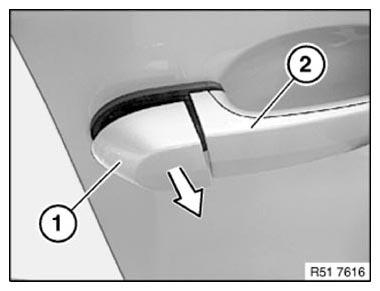

Pull off cover (1) in direction of arrow with outside door handle (2) opened slightly.

Fig 2: Pulling Off Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with light package:

Installation:

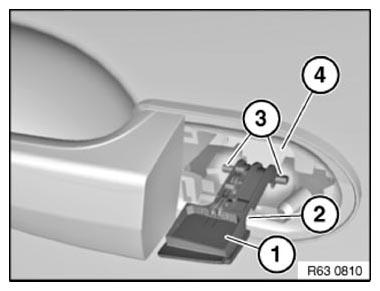

Make sure outside door handle light (1) is correctly positioned in area (2).

Guides (3) of outside door handle light (1) must be correctly seated in carrier for outside door handle (4).

Fig 3: Guides Of Outside Door Handle Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

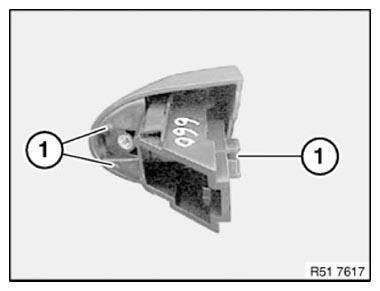

Guides (1) must not be damaged.

Fig 4: Guides On Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
