51 21 125 Removing And Installing/Replacing Carrier For Left Or Right Outside Door Handle With Lock Cylinder

Necessary preliminary tasks

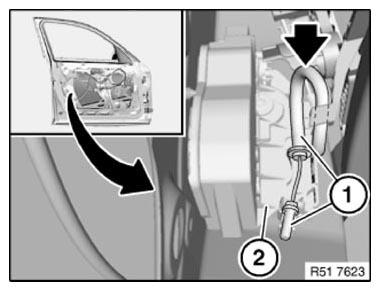

Release Bowden cable (1) from door lock (2).

Installation:

Bowden cable (1) must be correctly engaged in locators in door lock (2).

Bowden cable (1) must be laid without kinks in bend to door lock (2).

Fig 1: Removing Bowden Cable From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Door can not be opened if Bowden cable (1) is incorrectly laid.

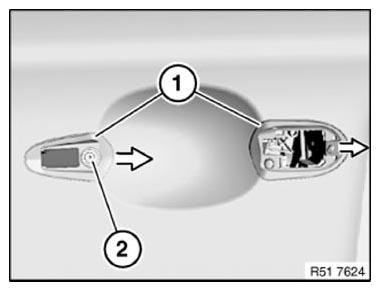

Remove seals (1) in direction of arrow.

Release screw (2).

Fig 2: Removing Seals

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release cable holder on carrier (1).

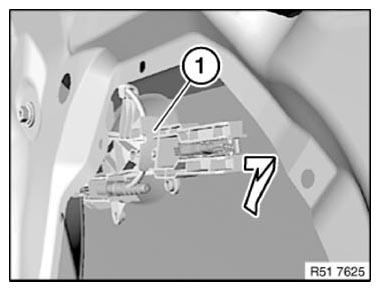

Remove inner carrier (1) in direction of arrow and feed out of door.

Fig 3: Removing Inner Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

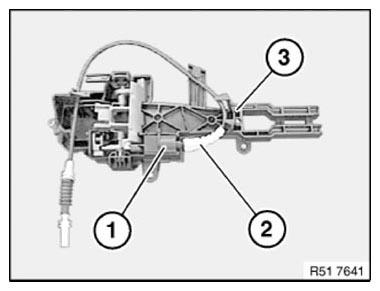

If necessary, release cable connector (1).

Feed Bowden cable (2) out of carrier (3).

Fig 4: Cable Connector, Bowden Cable & Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
