51 31 241 Replacing Rubber Frame (Top/Side) For Rear Window

Open rear lid.

NOTE: For purposes of clarity, illustrations do not show the rear lid.

IMPORTANT: Rubber frame (1) features an aluminum section inlay (2).
Carefully unwind rubber frame (1) (rear window breakage).

NOTE: Tear-off lip (5) may be stuck to adhesive (4).

When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

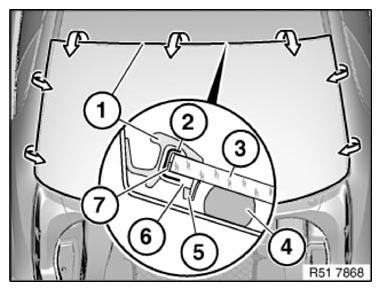

Fig 1: Removing Rubber Frame For Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pay attention to center marking on rubber frame (1) and windscreen.

Replacement of rubber frame without rear window removal:

Detach tear-off lip (3) from rubber frame (1).

If adhesive has managed to get onto bridge (4), this area must be cut out partially.

To facilitate installation, coat rubber frame (1) and body cutout with water.

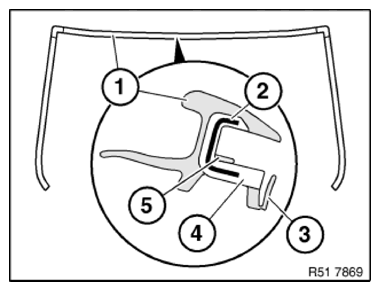

Fig 2: Rubber Frame, Bridge, Tear-Off Lip, Aluminum Strip And Butyl

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame (1) with tear-off lip (3).
