51 47 065 Removing And Installing/Replacing Finishing Strip At Front Left Or Right Entrance

Special tools required:

IMPORTANT: Risk of damage!
Do not raise finishing strip (2) over entire length simultaneously.

Unclip clips (1) for finishing strip (2) with special tool 00 9 317 .

Remove finishing strip (2).

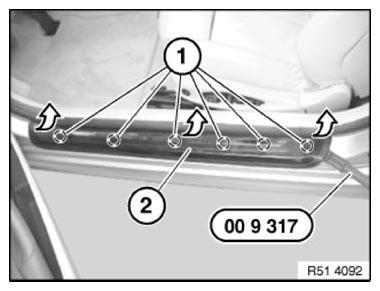

Fig 1: Removing Clips For Finishing Strip Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

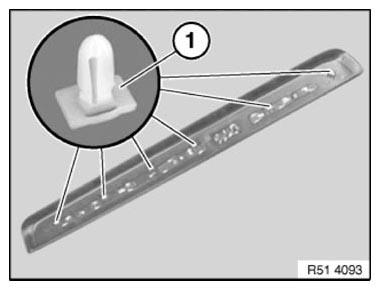

Fig 2: Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
