26 20 000 Removing and installing front propeller shaft

IMPORTANT: Do not move vehicle with drive power once propeller shaft has been removed.

IMPORTANT: On four-wheel drive vehicles with defective, non-engaging drive, it is imperative that the following information is taken account of.

Necessary preliminary tasks

Release screws.

Installation note:

Replace ZNS bolts.

Tightening torque 26 11 9AZ

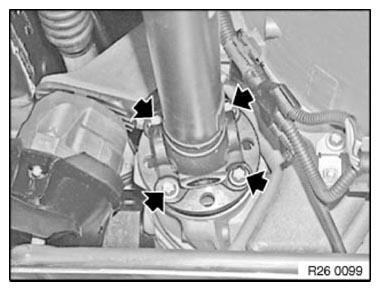

Fig 1: Locating ZNS Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove propeller shaft.

Installation note:

Replace ZNS bolts.

Tightening torque 26 11 9AZ

Fig 2: Locating ZNS Bolts Of Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
