41 62 014 Adjusting Rear Lid
Read contents of BODY, GENERAL .
The 41 00... BODY GAP DIMENSIONS serve as the basis for adjustment work.
Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate color.

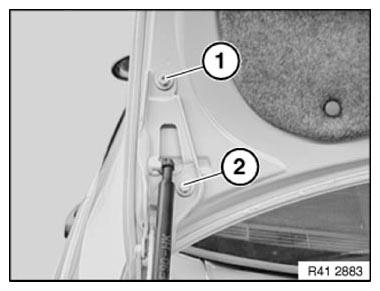

Slacken screws (1) and (2) on rear lid hinge to rear lid until such stage that rear lid can still be moved.
Adjust rear lid.
Retighten all screws.
Tightening torque: 41 62 1AZ .
Adjusting height of rear lid in relation to side panel:

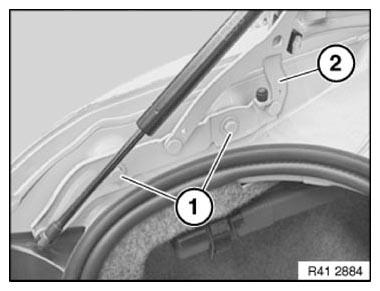

Slacken screws (1) on rear lid hinge to side panel until such stage that rear lid can still be moved.
Adjust rear lid.
Retighten all screws.
Tightening torque: 41 62 3AZ .
Adjust REAR LID LOCK .
