34 11 000 Removing and installing/replacing brake pads on both front disc brakes (N54/M57T2 Top/N57)

Special tools required:

IMPORTANT:

Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
Retaining pins and expanding spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!
Observe GUIDELINE FOR APPLYING BRAKE PAD PASTE ON BRAKE PADS AND BRAKE ANCHOR PLATE!

IMPORTANT: European version only.
Sport brake pads for M3:

Due to the increased strain on the brake discs, we recommend that you also replace the BRAKE DISCS when fitting a new set of brake pads
It is absolutely essential to replace the BRAKE DISCS if cracked ≥ 13 mm even before the brake pad is worn

Necessary preliminary tasks

Remove WHEELS .
Remove BRAKE PAD WEAR SENSOR

Lever out retaining spring (1) in direction of arrow towards rear.

Installation note:

Attach retaining spring (1) first at top and bottom and then allow retaining lug (2) to engage in recess of brake caliper housing.

Fig 1: Removing Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plastic plugs (1).

Fig 2: Identifying Plastic Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Left:

Pull brake pad wear sensor (1) towards rear out of pad.

Release guide screws (2) with special tool 34 1 080 . Withdraw brake caliper backwards.

Installation note:

Only clean guide bolts; do not grease.

Check threads.

Replace all guide screws which are not in perfect condition.

Tightening torque 34 11 4AZ .

Fig 3: Identifying Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Press back brake pads and piston with special tool 34 6 320 .

IMPORTANT: When forcing piston back:

Pay attention to brake fluid level in expansion tank; brake fluid that spills over will damage paintwork.

Fig 4: Pressing Back Brake Pads And Piston With Special Tool 34 6 320
Courtesy of BMW OF NORTH AMERICA, INC.

Press brake pads inwards and remove.

The two brake pads are seated with a spring in the piston or in the brake caliper housing and must not be mixed up.

IMPORTANT: Mark any worn brake pads.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe MINIMUM THICKNESS OF BRAKE PADS .

Clean brake pads.

Do not apply grease to brake lining backplate.

Fig 5: Identifying Minimum Thickness Of Brake Pads

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The outer brake pads gradually need to be changed as well.

The previous version (A) with retaining spring (1) is replaced by brake pads of version (B) without retaining spring!

The use of pad sets of version (A) with retaining spring continues to be permissible!

Fig 6: Identifying Outer Brake Pad Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Check minimum brake disc thickness:

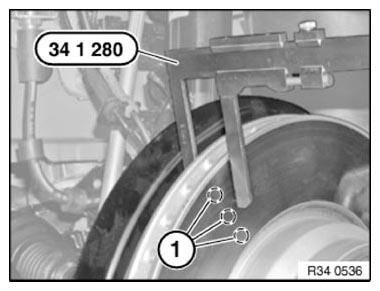

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with SETPOINT VALUE .

Fig 7: Checking Minimum Brake Disc Thickness
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disc thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Check dust boot for damage and renew if necessary.

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Fig 8: Identifying Brake Cleaner Contact Surface Area

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Cleaning Contact Surfaces Of T-Heads/Brake Caliper Housing With Brake Cleaner

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Brake Pad Guide Surfaces On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 12: Identifying Guide Surfaces For Brake Pads On Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 13: Coating T-Head Of Inner Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 14: Coating T-Head Of Outer Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing work:

Fully depress brake pedal several times so that brake pads contact brake discs.
When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
Read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .
If necessary, when replacing pads, reset CBS display in accordance with factory specification.
