52 26 390 Removing And Installing Or Replacing Left Or Right Rear Head Restraint

Necessary preliminary tasks

• Unlock backrest and tilt forward

Move head restraint (1) upwards to maximum extent.

Press lock (2) and pull out head restraint.

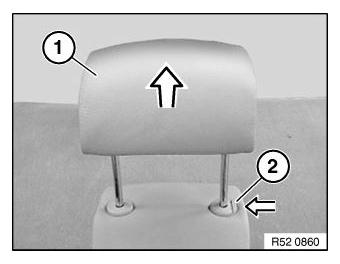

Fig 1: Moving Head Restraint Upwards

Courtesy of BMW OF NORTH AMERICA, INC.
