52 13 390 Removing And Installing Or Replacing Front Left Or Right Head Restraint

Press catch (1) and lift out head restraint (2).

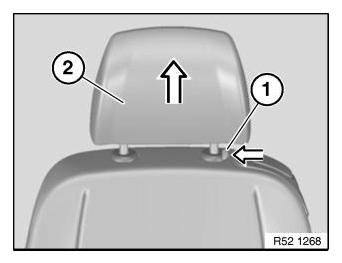

Fig 1: Lifting Out Head Restraint
G09851268Courtesy of BMW OF NORTH AMERICA, INC.
