51 24 130 Removing And Installing/Replacing Striker For Rear Lid Lock

Necessary preliminary tasks

• Remove TRIM ON TAIL PANEL

Release screws (1) and remove striker.

Tightening torque 51 24 2AZ .

Installation:

Adjust STRIKER .

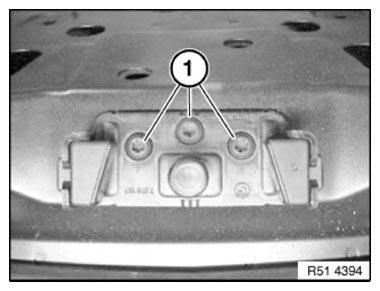

Fig 1: Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.
