51 24 100 Removing And Installing/Replacing Rear Lid Lock (Upper Section)

Necessary preliminary tasks

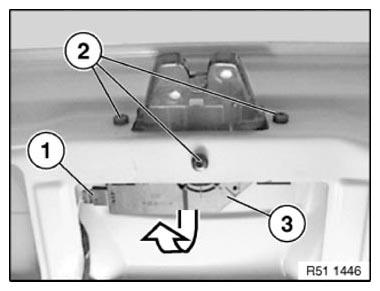

Release screws (2) and feed out upper section of rear lid lock (3).

Disconnect plug connection (1).

Installation:

Use self-tapping screws when replacing upper section of rear lid lock (3).

Tightening torque 51 24 1AZ (E82, E88, E90, E92).

Fig 1: Feeding Out Upper Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

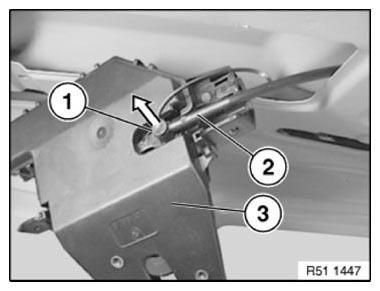

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:

Make sure lock (1) is correctly seated.

Fig 2: Removing Upper Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
