51 13 312 Removing And Installing (Replacing) Trim Strip On Roof Gutter At Left Or Right
Necessary preliminary tasks
- Remove the REAR WEATHER STRIP
IMPORTANT:
Make sure that body is not damaged.
Perform repair work with the aid of a second person.
Perform repair work with the aid of a second person.

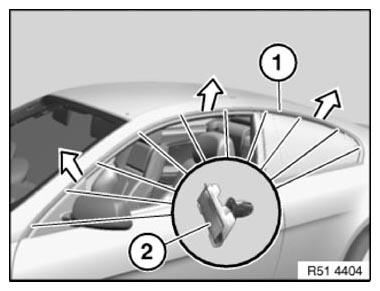

Pull off trim strip (1) from clamps (2) in direction of arrow starting at the front.
Installation note:
To avoid leaks and noises, check all clips (2) for visible damage.
If necessary, replace faulty clamps (2).
Installation note:

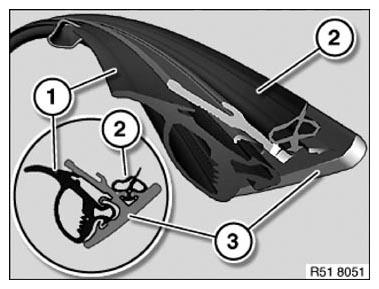

Make sure gaskets (1 and 2) are correctly fitted on the trim strip (3).
Replacement
Coat the gaskets (1 and 2) and the trim strip (3) with water.
Insert the gaskets (1 and 2) into the trim strip (3).
IMPORTANT:
- Carry trim strip by its middle section only (risk of damage)
- Perform installation work with a second person helping
- Prepositioning of trim strip
- Ensure gutter strip runs parallel to side frame (risk of breakage)
