51 13 280 Removing And Installing/Replacing Trim Strip On Roof Frame At Left Or Right
Special tools required:
Necessary preliminary work
E84 and E91 only:
- If necessary, remove roof rails

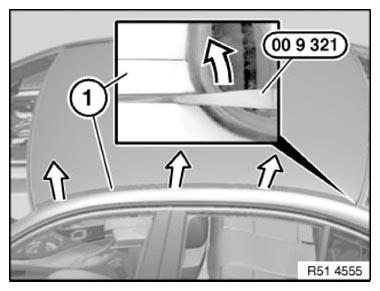

Lever out trim strip (1) with special tool 00 9 321 starting at rear.
Unclip trim strip (1) in direction of arrow.
Installation note:

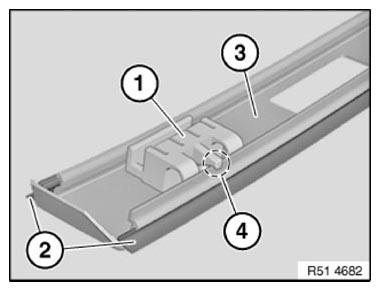

Clips (1) and seals (2) on trim strip (3) must not be damaged.
If necessary, replace faulty clips (1).
Position of clips (1) on trim strip (3) is determined by notch (4).
Installation note:

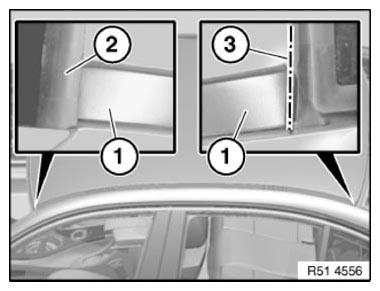

Push trim strip (1) at front into seal (2).
Trim strip (1) must be flush with edge (3) at rear.
Special tools required:
Lever out trim strip (1) with special tool 00 9 321 starting at rear.
Unclip trim strip (1) in direction of arrow.
Installation note:
Push trim strip (1) at front into gasket (2).
Trim strip (1) must be flush with edge (3) at rear.
Installation note:
Clips (1) must not be missing or damaged.
If necessary, bond new clips (1) inside the molding on roof.
Observe NOTES for securing components with adhesive tape.
Minimum contact pressure can be achieved by pressing firmly with thumb or ball of hand (pressing for at least 2 seconds).
When clips (1) are freshly bonded, the trim strip may only be installed after a hardening time of 4 hours.
