51 13 061 Replacing Wheel Arch Trim On Front Left Or Right Side Panel (Japanese National-Market Version)

IMPORTANT:

The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

IMPORTANT:

For reasons of optimal adhesion, painting of bonding surfaces on the inside of the wheel arch trim is prohibited.
The application of the adhesive pad (double-sided adhesive tape) onto the wheel arch trim must therefore occur prior to painting the wheel arch trim!

Wheel arch trim primed
adhesive pad

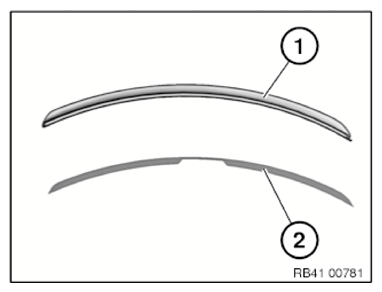

Fig 1: Wheel Arch Trim Primed And Adhesive Pad
Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Carefully heat the wheel arch trim (1) with a hot air blower (temperature approx. 40-55 ° C) and pull off.

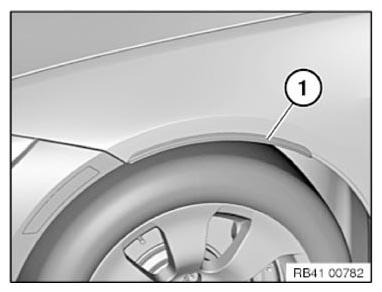

Fig 2: Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull protective film off adhesive pad (double-sided adhesive tape).

Attach wheel arch trim according to dimension a to side wall and firmly press against it.

Dimension a = approx. 2.5 mm from corner of side wall.

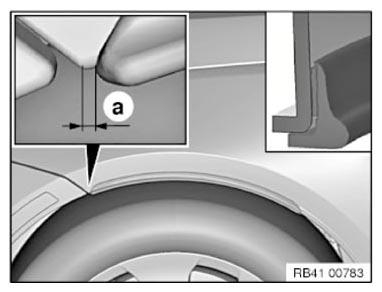

Fig 3: Wheel Arch Trim Dimension
