51 13 017 Removing And Installing/Replacing Frame For Grille In Engine Hood/Bonnet On Left Or Right

Special tools required:

Lever out frame (1) with special tool 00 9 323 along dashed line.

Carefully pull frame (1) in direction of arrow out of guide and remove.

Installation:

Make sure frame (1) is correctly seated in respective locators.

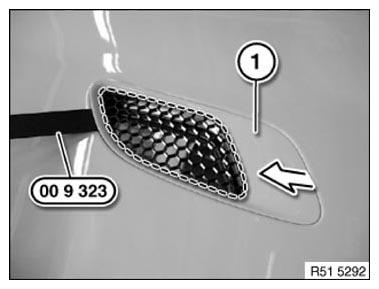

Fig 1: Removing Frame Using Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides (2) must not be damaged.

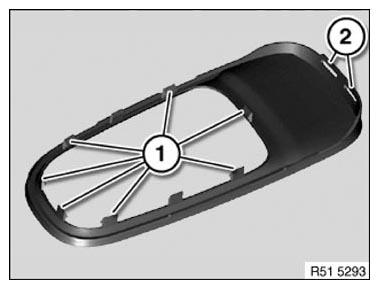

Fig 2: Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
