51 13 001 Removing And Installing/Replacing Front Radiator Grille, Middle Left Or Right

Release screws (1) and pull bumper trim (3) forwards slightly.

Release catches (4) from inside and remove central radiator grille (2) towards front.

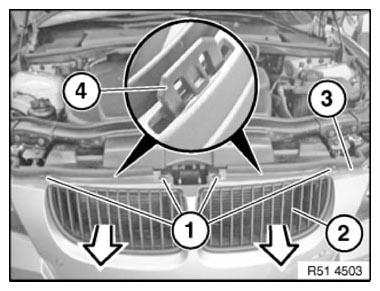

Fig 1: Removing Central Radiator Grille Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

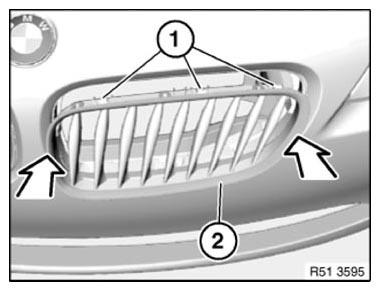

Fig 2: Pushing Front Radiator Grille Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release catches (1).

Remove chrome frame (2) from radiator grille (3).

Installation:

Catches (1) on chrome frame (2) and radiator grille (3) must not be damaged.

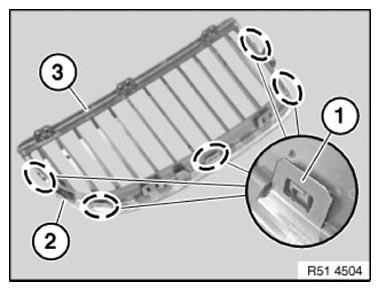

Fig 3: Catches On Chrome Frame And Radiator Grille
