51 43 004 Removing And Installing/Replacing Decorative Strip On Left Or Right Side Trim Panel

Special tools required:

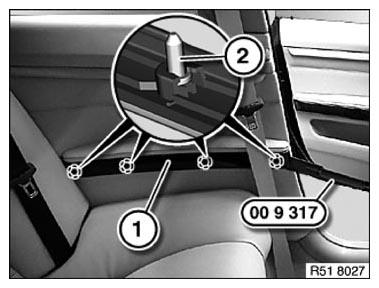

Starting at front, detach decorative strip (1) with special tool 00 9 317 from clips (2) and remove.

Installation:

Clips (2) on decorative strip (1) must not be damaged.

Fig 1: Clips On Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

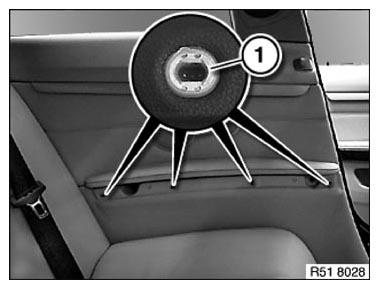

Released or damaged Hutfix clips (1) must be replaced.

Fig 2: Hutfix Clips

Courtesy of BMW OF NORTH AMERICA, INC.
