51 43 002 Removing And Installing Rear Left Or Right Side Trim Panel

Special tools required:

00 9 317

IMPORTANT: Risk of damage to fibre optic cable in side trim panel.
LIGHT STRIP must be replaced if fibre optic cable is damaged.

Necessary preliminary tasks

Remove DECORATIVE STRIP FROM SIDE TRIM PANEL
Remove ARMREST SIDE SECTION
Remove REAR SEAT

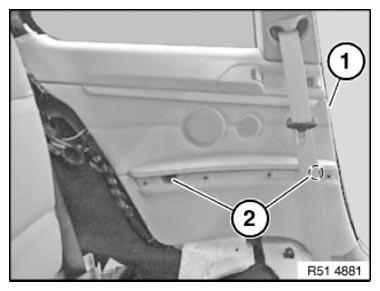

Detach mucket (1) in area of side trim panel.

Unfasten screws (2).

Tightening torque 51 43 3AZ .

Fig 1: Mucket And Screws

G09851071

Courtesy of BMW OF NORTH AMERICA, INC.

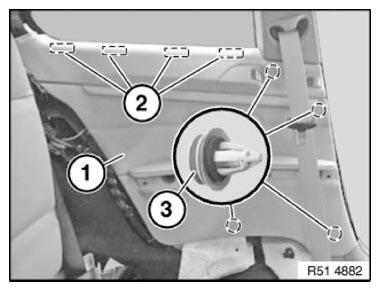

Carefully detach side trim panel (1) with special tool 00 9 317 from retainers (2) and clips (3).

Pull side trim panel (1) inwards only to such an extent that plug connections can be disconnected.

NOTE: Fibre optic cable may break off if side trim panel (1) is pulled too far inwards.

Fig 2: Side Trim Panel With Retainers And Clips

G09851072

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from outside through door window.

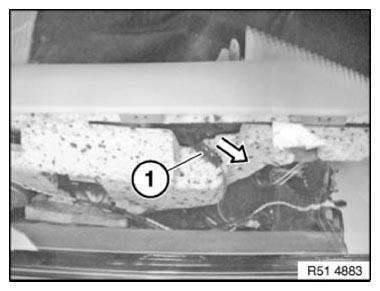

Carefully detach LED holder (1).

Disconnect plug connections from control unit and speaker and remove side trim panel.

Fig 3: Removing LED Holder

G09851073

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

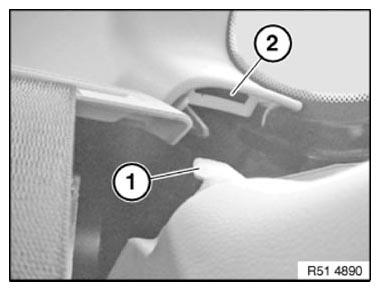

Lug (1) on side trim panel must be correctly inserted into guide (2) of C-pillar panel.

Fig 4: Lug On Side Trim Panel And Guide

G09851074

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

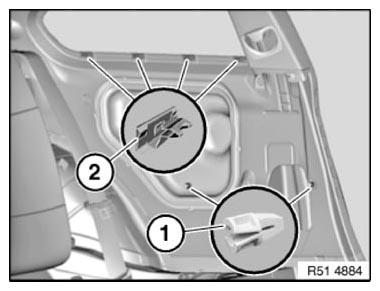

If necessary, replace faulty nuts (1) and/or retainers (2).

Fig 5: Nuts And Retainers

G09851075

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

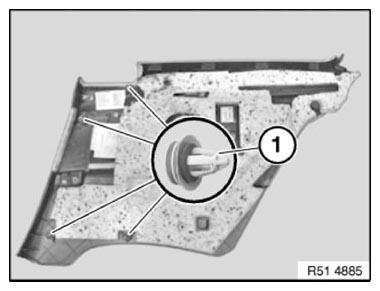

Fit all clips (1) with sealing ring.

If necessary, replace faulty clips (1).

Fig 6: Clips

G09851076

Courtesy of BMW OF NORTH AMERICA, INC.
