51 12 825 Removing And Installing/Replacing Guide For Rear Center Bumper

Necessary preliminary tasks:

• Remove rear bumper trim  . See 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM

Version with Comfort Access:

• Remove BUMPER AERIAL FOR COMFORT ACCESS

E93:

• Release bumper antenna from bumper guide

If necessary, feed out cable (1) of Park Distance Control.

Release nuts (2) and remove guide (3).

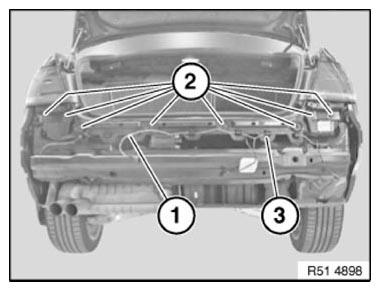

Fig 1: Cable, Nuts & Guide

Courtesy of BMW OF NORTH AMERICA, INC.
