51 12 157 Replacing Rear Bumper Trim

Necessary preliminary tasks

• Remove rear BUMPER TRIM

Version with M Technic aerodynamic kit:

• Remove trim from bumper
• Remove bottom middle trim

Remove cover cap (1) for tow lug.

Version with PDC:

Remove all ULTRASONIC TRANSDUCERS (2).

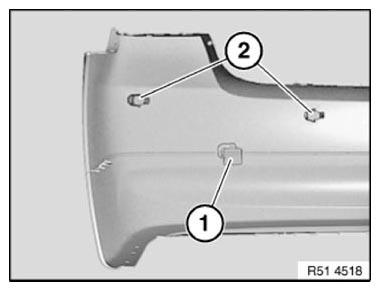

Fig 1: Cover Cap & Ultrasonic Transducers

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

• Remove rear BUMPER TRIM

Remove cover cap (1) for tow lug.

Remove REAR TRIM GRILLE  (2).

Version with PDC:

Remove all ULTRASONIC TRANSDUCERS (3).

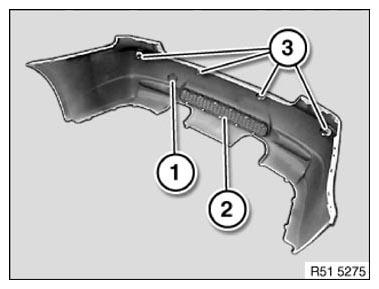

Fig 1: Rear Trim Grille, Cover Cap For Tow Lug & Ultrasonic Transducers

Courtesy of BMW OF NORTH AMERICA, INC.
