51 12 090 Removing And Installing/Replacing Trim Grille In Bumper Trim

Necessary preliminary tasks

• Remove rear BUMPER TRIM

Release catches (1) and remove center grille (2).

Installation:

Catches (1) must not be damaged

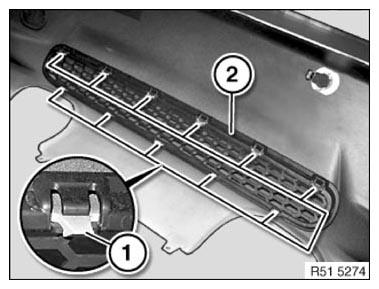

Fig 1: Catches And Center Grille

Courtesy of BMW OF NORTH AMERICA, INC.
