51 12 050 Removing And Installing/Replacing Carrier For Rear Bumper Trim

Necessary preliminary tasks:

• Remove BUMPER TRIM

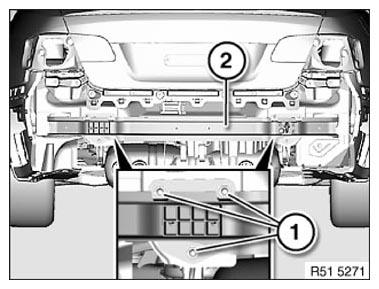

Release nuts (1) and remove carrier (2).

Tightening torque 51 12 1AZ .

Fig 1: Carrier & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

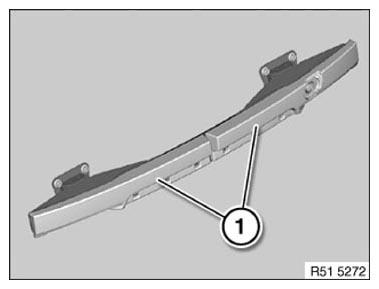

Modify rear impact absorber (1).

Fig 2: Rear Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
