51 16... Removing And Installing Or Replacing Retaining Ring On Left Or Right Door Mirror

Necessary preliminary tasks

• Remove COVER CAP FROM DOOR MIRROR
• Remove TRIM FROM DOOR MIRROR
• Remove DRIVE for electrically adjustable door mirror

Release screws (1) on retaining ring (2).

Fig 1: Screws On Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip catch (1) and remove retaining ring (2).

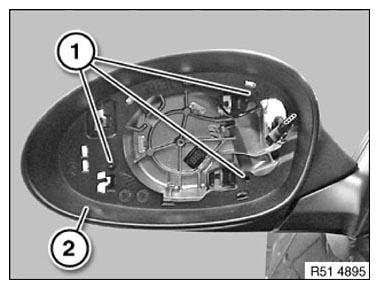

Fig 2: Catch And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (1) and guide (2) must not be damaged.

Locators (3) for multitooth catches must not be damaged.

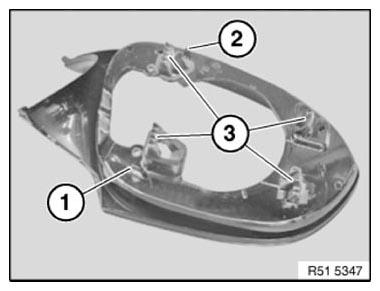

Fig 3: Catch, Guide And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
