51 16 213 Replacing Trim For Storage Compartment

Necessary preliminary tasks

• Remove TRIM FOR STORAGE TRAY
• Modify INSERT FOR CENTER CONSOLE

Version with controller:

• Modify controller  . See 61 31 195 REMOVING AND INSTALLING (REPLACING) FRONT CONTROLLER (UNTIL 09/2008) or 61 31 195 REMOVING AND INSTALLING (REPLACING) FRONT CONTROLLER (FROM 09/2008)

  E93 only:

• Modify switch for convertible top operation

Version without controller:

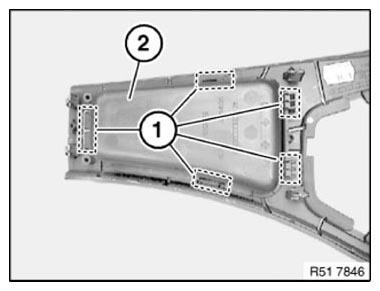

Carefully release catches (1) and remove storage tray (2).

Fig 1: Catches And Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
