51 16 154 Removing And Installing/Replacing Insert For Center Console

Necessary preliminary tasks

• Remove TRIM FOR STORAGE COMPARTMENT

Remove foam material (1).

Release screws (2) and remove insert/ashtray (3).

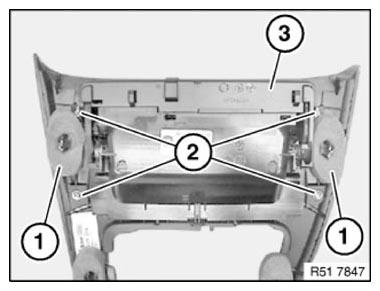

Fig 1: Insert/Ashtray, Foam Material And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
