51 16 060 Removing And Installing/Replacing Inside Mirror (With Rain Sensor): Notes

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

Version with remote key for central locking system:

If necessary, disconnect negative lead from BATTERY .

Version with compass:

Check compass function if replacing or after disconnecting inside mirror plug connection or battery.

If necessary, calibrate compass in interior rearview mirror . See 51 16... CALIBRATING COMPASS IN INSIDE MIRROR (UP TO 09/08) or 51 16... CALIBRATING COMPASS IN INTERIOR REARVIEW MIRROR (FROM 09/08) .

E60 Security version:

Rain sensor is not installed, cable connection is tied back in headlining.

IMPORTANT: To avoid windscreen breakage:
Screw inside mirror off mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.

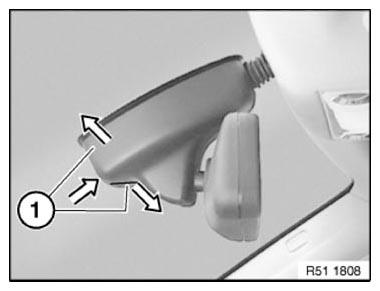

Press on end caps (1) and at same time press them apart; this releases clip connection of both caps (1).

Fig 1: Removing Clip Connection Of Both Caps

Courtesy of BMW OF NORTH AMERICA, INC.

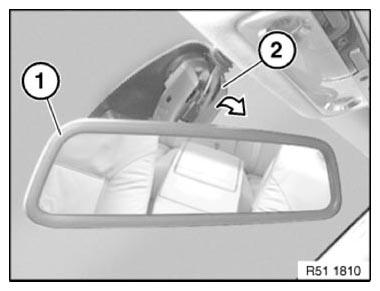

Twist inside mirror (1) at an angle towards front and right/top.

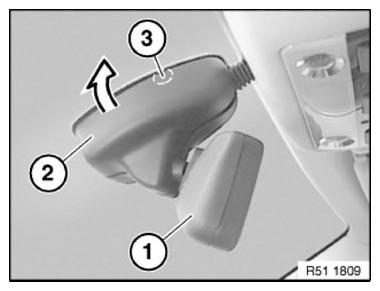

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Twisting Inside Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Twist inside mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

Fig 3: Swiveling Right End Cap Off Ball Neck

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

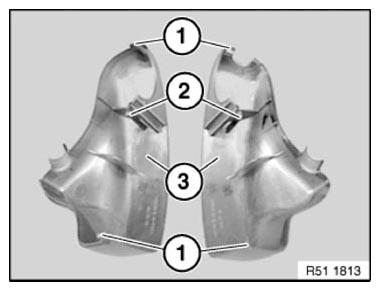

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

Fig 4: Clips And Retaining Hooks Of End Caps

Courtesy of BMW OF NORTH AMERICA, INC.

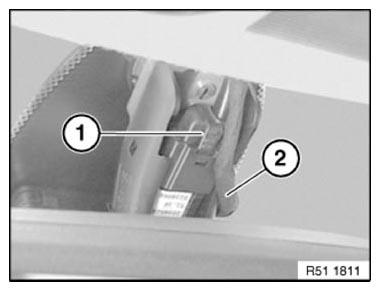

Disconnect plug connection (1).

NOTE: Pay attention to cable routing (2) for rain sensor.

E60 Security version:

Rain sensor is not installed, cable connection is tied back in headlining.

Fig 5: Cable Routing And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull or press inside mirror off towards front or rear.

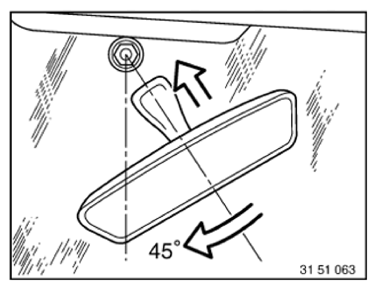

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.

Fig 6: Twisting Mirror Base Approx. 45° To Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist mirror foot by approx. 45° and fit to mirror base.
Turn mirror base until it engages on mirror mount.

Fig 7: Twisting Mirror Foot By Approx. 45°
Courtesy of BMW OF NORTH AMERICA, INC.
