51 16 060 Removing And Installing/Renewing Inside Mirror (With Japanese Inside Mirror With Electronic Toll Function): Notes
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).
Version with remote key for central locking system:
If necessary, disconnect negative lead from BATTERY .
Version with compass:
Check compass function if replacing or after disconnecting inside mirror plug connection or battery.
If necessary, calibrate compass in interior rearview mirror . See 51 16... CALIBRATING COMPASS IN INSIDE MIRROR (UP TO 09/08) or 51 16... CALIBRATING COMPASS IN INTERIOR REARVIEW MIRROR (FROM 09/08) .
E60 Security version:
Rain sensor is not installed, cable connection is tied back in headlining.
Screw inside mirror off mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.

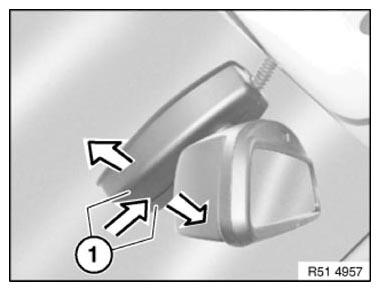

Press on end caps (1) and at same time pull them apart; this releases clip connection of both caps (1).

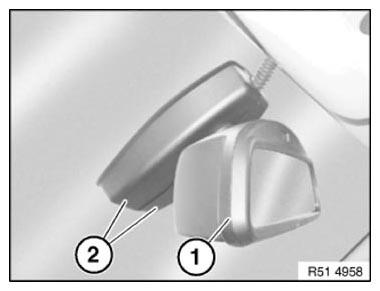

Turn inside mirror (1) to right and left and feed out end caps (2).
Installation note:

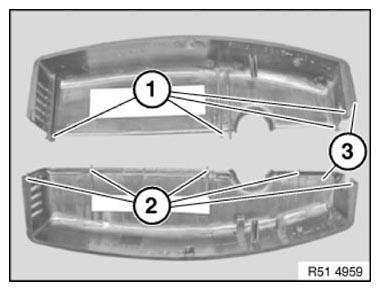

Latch mechanisms (1) and guides (2) of end caps (3) must not be damaged, replace if necessary.

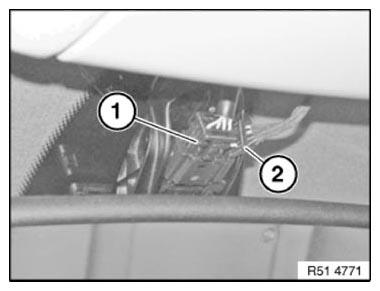

Disconnect plugs (1 and 2).
E60 Security version:
Rain sensor is not installed, cable connection is tied back in headlining.

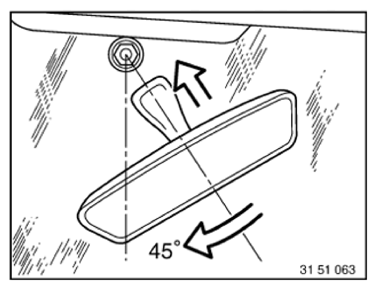

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.
Installation note:
- Twist mirror foot by approx. 45° and fit to mirror base.
- Turn mirror base until it engages on mirror mount.
