41 63 003 Replace Cover Bowl

Necessary preliminary tasks:

NOTE: Carry over schematic diagram to the relevant vehicle type.

IMPORTANT: Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.

Following new body parts are required (see OVERVIEW OF CONSUMABLES )

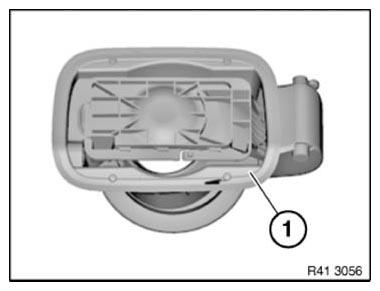

(1) Cover bowl

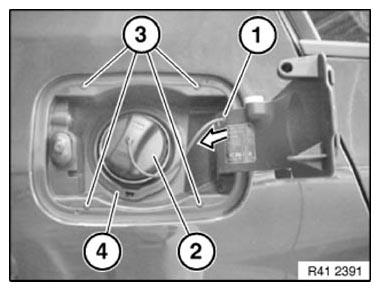

Fig 1: Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

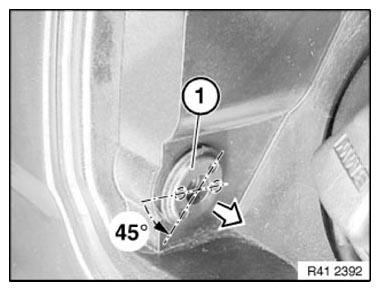

Turn sleeve (1) by approx. 45° and pull out in direction of arrow.

Fig 2: Turning Sleeve By Approx. 45°

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining strap (1) inwards and remove (see arrow).

Pierce cover bowl at markings (3) with a small screwdriver.

Remove cover (2).

Fig 3: Pressing Retaining Strap Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations shows fuel filler pipe removed.

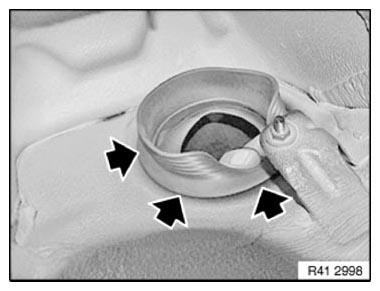

Remove rubber seal from sheet metal flange.

Fig 4: Removing Rubber Seal From Sheet Metal Flange

Courtesy of BMW OF NORTH AMERICA, INC.

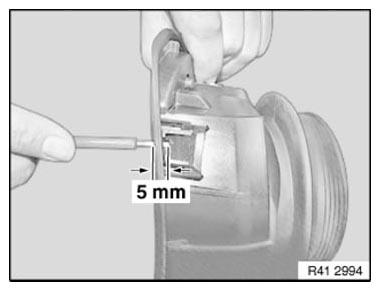

Insert screwdriver to a depth of max. 5 mm and unlock cover bowl latch mechanism.

Fig 5: Unlocking Cover Bowl Latch Mechanism By Inserting Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

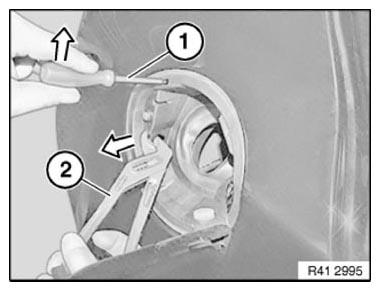

Keep cover bowl tensioned with pliers (2).

Unlock catches individually with screwdriver (1).

Unlock catches in following order:

Top left
Bottom left
Top right
Bottom right

Move screwdriver in opposite direction at both lower catches.

Fig 6: Unlocking Catches Individually With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Close hinge arm (1).

IMPORTANT: Do not damage sheet metal flange of side wall.

Carefully twist out cover bowl (2) at first at rear in direction of arrow from side panel and remove.

Fig 7: Twisting Out Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Open hinge arm.

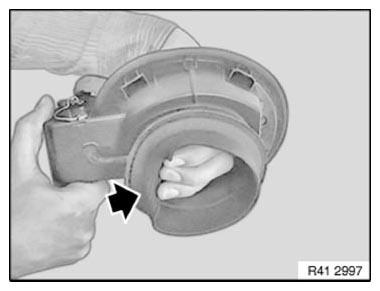

Turn sealing sleeve in area of hinge inwards and hold.

Insert cover bowl and engage sealing sleeve over fuel filler pipe.

Fig 8: Turning Sealing Sleeve In Area Of Hinge Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Using fitting aid (1), pull sealing lip (2) over sheet metal flange of wheel arch (3).

Fig 9: Pulling Sealing Lip Over Sheet Metal Flange Of Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Illustrations shows fuel filler pipe removed.

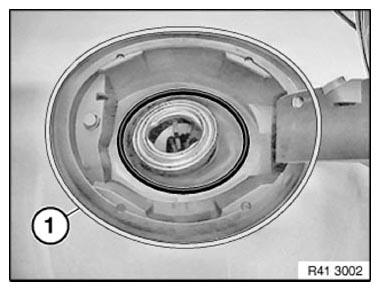

Check that sealing lip is correctly seated.

Fig 10: Locating Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Cover bowl must snap into place 4 times.

After installing, carefully check cover bowl at clips for secure seating.

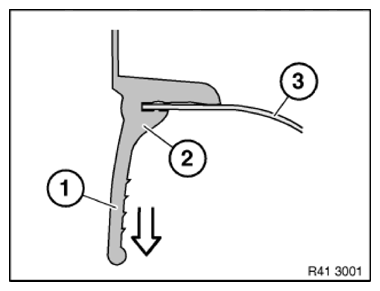

There must be no discernible gap between sealing lip and side wall in area (1).

Fig 11: Gap Between Sealing Lip And Side Wall

Courtesy of BMW OF NORTH AMERICA, INC.
