51 45 181 Removing And Installing/Replacing Bottom Right Trim For Instrument Panel

NOTE: Move front passenger seat completely towards rear.

Release screws (1).

Feed out trim (2) bottom front.

If necessary, detach plug from footwell light.

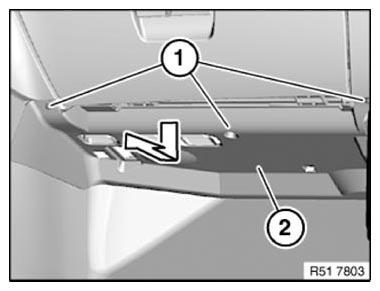

Fig 1: Feeding Out Trim Bottom Front

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on trim (2) must not be damaged.

Replacement

If necessary, remove FOOTWELL LIGHT

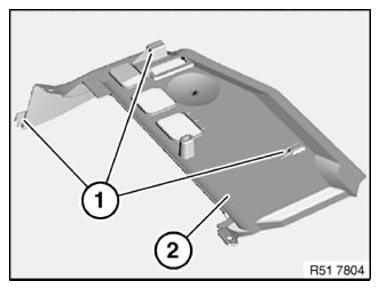

Fig 2: Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
