51 45 031 Replacing Instrument Panel Trim

Special tools required:

Necessary preliminary tasks

Release screws (1).

Remove center function carrier (2) from instrument panel trim (3).

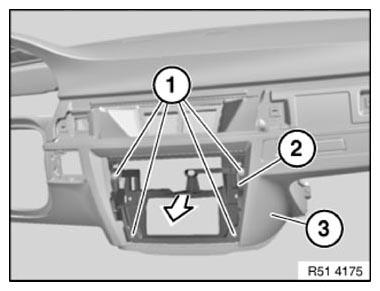

Fig 1: Removing Center Function Carrier From Instrument Panel Trim
G09851118Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker receptacle (2) from instrument panel trim (3).

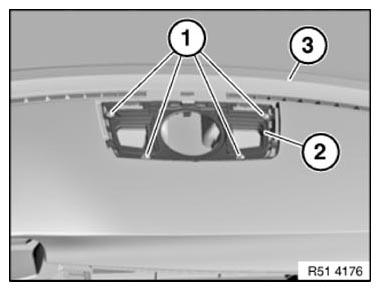

Fig 2: Speaker Receptacle, Instrument Panel Trim And Screws
G09851119Courtesy of BMW OF NORTH AMERICA, INC.

Remove AIRBAG MODULE ON PASSENGER SIDE .

Release screws (1).

Remove holder for airbag module on passenger side (2) from instrument panel trim (3).

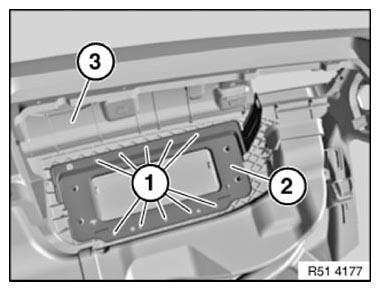

Fig 3: Holder For Passenger Side Airbag Module, Trim & Screws
G09851120Courtesy of BMW OF NORTH AMERICA, INC.

Unclip both side fresh-air grills (1) with special tool 00 9 340 in direction of arrow from instrument panel trim (2).

Unclip cover for steering column opening (3) in direction of arrow from instrument panel trim (2).

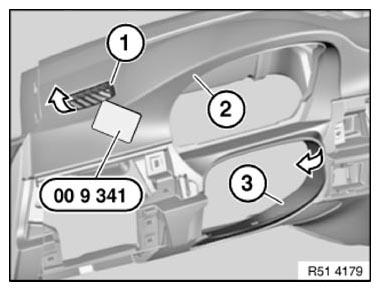

Fig 4: Removing Side Fresh-Air Grills Using Special Tool 00 9 340
G09851121Courtesy of BMW OF NORTH AMERICA, INC.

Remove all metal nuts (2) and clips (3) from instrument panel trim (1).

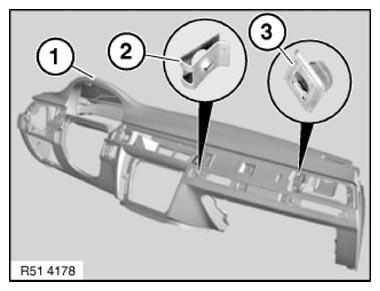

Fig 5: Metal Nuts And Clips From Instrument Panel Trim
G09851122Courtesy of BMW OF NORTH AMERICA, INC.
