51 23 400 Removing And Installing/Replacing Left Or Right Actuator (Active Pedestrian Protection)

WARNING: Adhere to the following SAFETY INFORMATION so as to avoid a danger of injury by the actuator.
The BATTERY NEGATIVE LEAD must be clamped off prior to work on the actuator or engine compartment lid!
Do not exert any force on the actuator.
Incorrect handling may result in triggering of the actuator and thereby cause serious injury.

Necessary preliminary work

Disconnect BATTERY EARTH LEAD .

REMOVE COWL PANEL COVER .

Lever out clip (1).

Release screws (2) and remove cavity sealing (3).

Fig 1: Cavity Sealing, Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

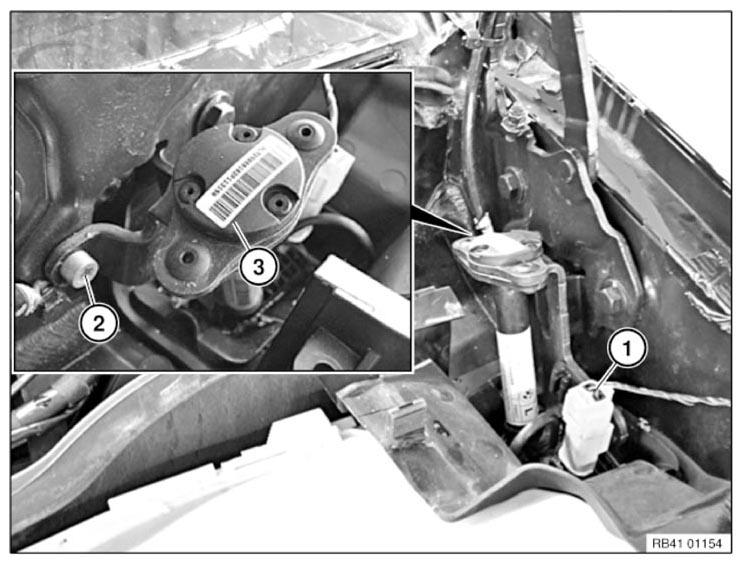

Fig 2: Plug Connection, Bolt And Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Release bolt (2) and remove actuator (3).

Tightening torque 41 61 4AZ .

Comply with notes regarding handling active PEDESTRIAN PROTECTION .
