51 23 211 Removing And Installing/Replacing Cable For Front Engine Hood Locks (To Passenger Compartment)

Necessary preliminary tasks

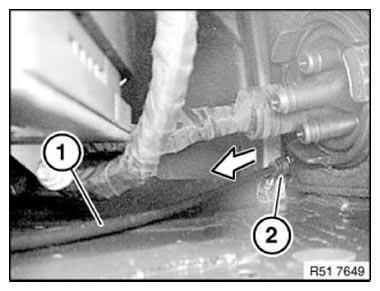

Disengage Bowden cable (1) from release lever (2) and feed out in direction of arrow.

Fig 1: Disconnecting Bowden Cable From Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

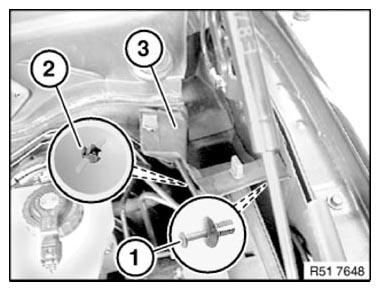

Release expander rivet (1) and nut (2).

Feed out water channel (3) towards top.

Installation:

Make sure water channel (3) is correctly seated.

Fig 2: Water Channel, Expander Rivet And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

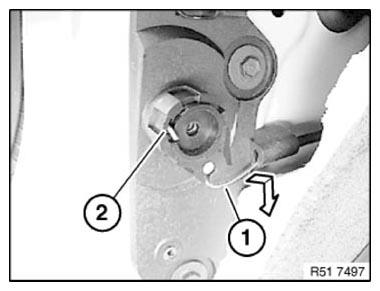

Feed out Bowden cable (1) in direction of engine compartment.

Installation:

Lay Bowden cable (1) without kinks.

IMPORTANT: Grommet (2) must not be damaged.
Check that grommet (2) is correctly seated (water ingress).

Fig 3: Feeding Out Bowden Cable In Direction Of Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

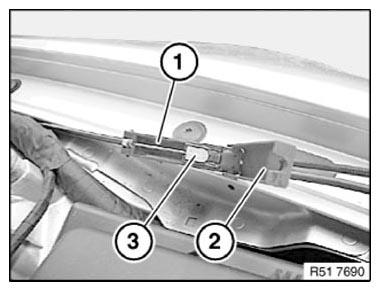

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1) and remove.

Fig 4: Cover, Bowden Cable & Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
