51 11.. Overview Of Front Bumper
51 11.. Overview Of Front Bumper

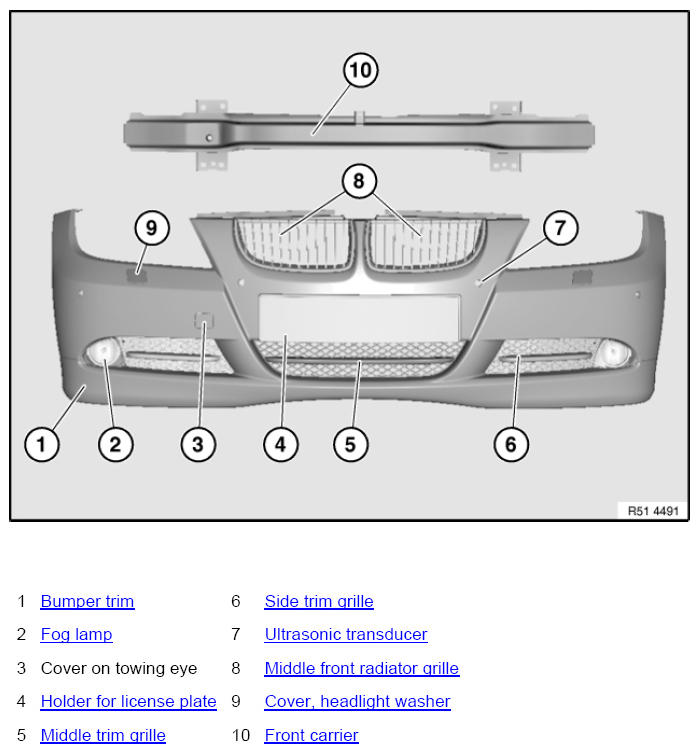

Fig 1: Overview Of Front Bumper (Version 1)
Courtesy of BMW OF NORTH AMERICA, INC.

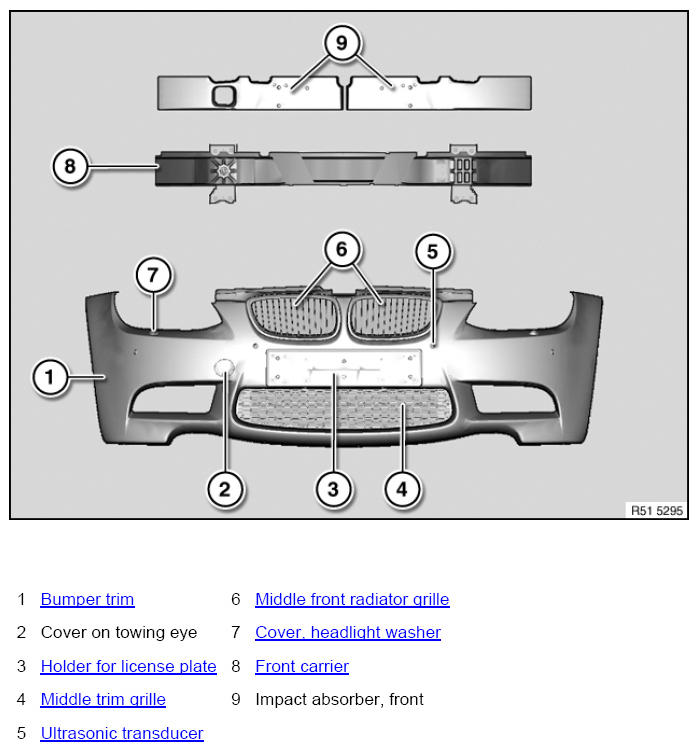

Fig 2: Overview Of Front Bumper (Version 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
