51 71 382 Removing And Installing/Replacing Rear Tensions Struts

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Driving without the tension strut is not permitted!

Release screws (1, 2, 3, 4).

Installation:

Make sure screws are installed in correct positions.

Screws (1) M10x25
Tightening torque 51 71 33AZ .
Screw (2) M12x1.5x50
Tightening torque 51 71 34AZ .
Screw (3) M8x25
Tightening torque 51 71 32AZ .
Screw (4) M12x1.5x35
Tightening torque 51 71 35AZ .

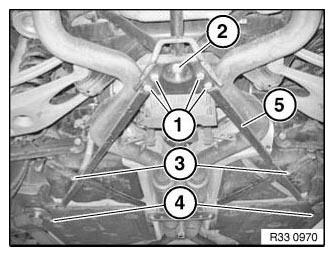

Fig 1: Rear Tensions Struts Screws
Courtesy of BMW OF NORTH AMERICA, INC.
