51 41 241 Removing And Installing/Replacing Cover For Armrest On Driver Door

Special tools required:

Necessary preliminary tasks

Release lock washers (1) on back of door trim panel (2).

Installation:

Studs for lock washers (1) must not be damaged.

If necessary, replace faulty lock washers (1).

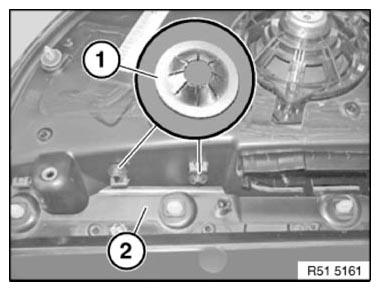

Fig 1: Lock Washers On Back Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim (1) with special tool 00 9 317 in upward direction from retainers (2).

Installation:

If necessary, replace faulty retainers (2).

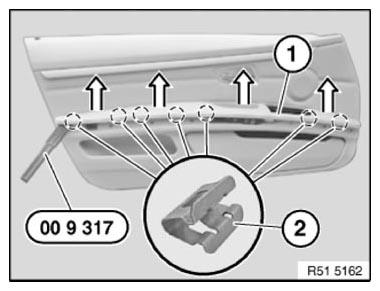

Fig 2: Removing Trim With Special Tool 00 9 317 In Upward Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim (2) must not be damaged.

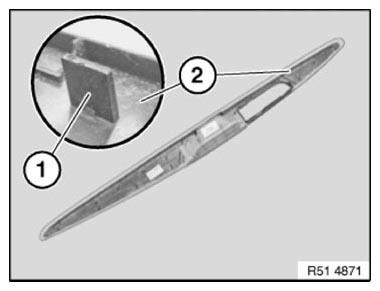

Fig 3: Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
