51 41 090 Replacing Light Strip On Door Trim Panel At Front

Necessary preliminary tasks

IMPORTANT: Risk of damage
Handle light strip with care.
Do not knock fibre optic cables.

Position new light strip on door trim panel (2) and mark welding spots (1) to be opened.

Drill out welding spots (1).

NOTE: Only drill down to door trim panel area so as not to damage the contact surface.

Feed light strip out of door trim panel (2).

Remove all remnants of plastic from contact surface of door trim panel (2).

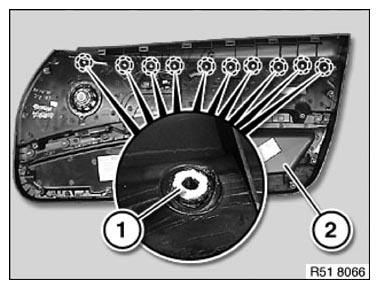

Fig 1: Door Trim Panel Welding Spots

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully feed light strip in area (1) into door trim panel.

Push welding pins (3) through holes into door trim panel and secure with locking washers (2).

Shorten welding pins (3) down to measurement (A).

3 mm

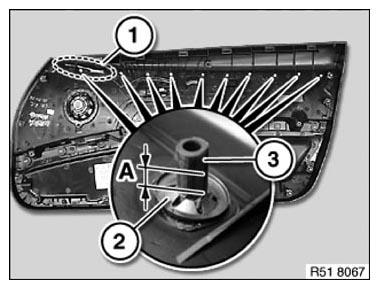

Fig 2: Welding Pins And Locking Washers Measurement
Courtesy of BMW OF NORTH AMERICA, INC.
