51 21... Removing Weather Strip With Special Tool 00 9 324 At Front Or Rear

Special tools required:

Open side window completely.

Front door:

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

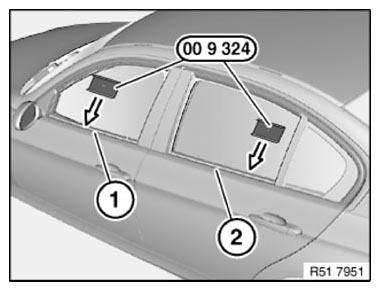

Fig 1: Removing Weather Strip With Special Tool 00 9 324 At Front/Rear

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

Special tool 00 9 324 must be correctly guided under weather strip (1).

2 Short leg, bottom
3 Long leg, top (TOP)

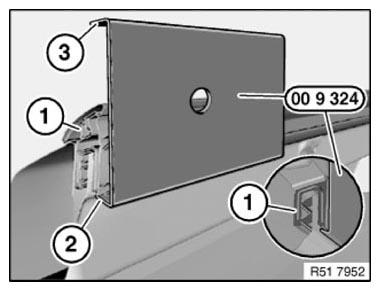

Fig 2: Inserting Special Tool 00 9 324 At Rear (C-Pillar) In Window Cavity
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage!
Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

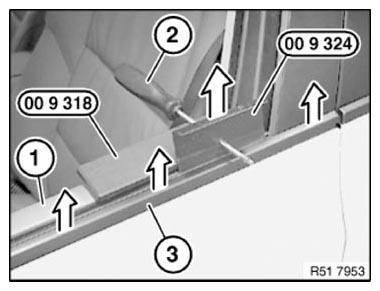

Fig 3: Positioning Special Tool 00 9 318 On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 00 9 318 on door trim panel (1).

Slide screwdriver (2) into special tool 00 9 324 and weather strip (3) upwards no more than 5 mm.

Guide special tools 00 9 324 and 00 9 318 towards front/rear and lever out weather strip (3).
