51 21 301 Removing And Installing/Replacing Window Cavity Cover Strip On Outside Of Front Door
Special tools required:
IMPORTANT:
The "INSTRUCTIONS ON FITTING WINDOW GUIDES " serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks
- Remove mirror on front door . See 51 16 000 REMOVING AND INSTALLING OR REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR

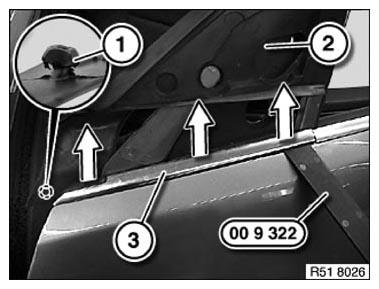

Pop catch (1) out of window guide (2) of door.
Pull window guide (2) approx. 30 mm upwards.
Carefully lever window cavity cover strip (3) with special tool 00 9 322 out of door.
Installation:
Catch (1) must not be damaged.
Moisten window cavity cover strip (3) prior to fitting with APPROVED ANTI-FRICTION AGENT .
Window cavity cover strip (3) must be flush at front to door.
