51 11 773 Replacing Front Lower Left Or Right Deformation Element
Necessary preliminary work
- Remove support for bumper panel at front bottom
- Remove front underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION or 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION (AWD)
- Remove brake air duct.

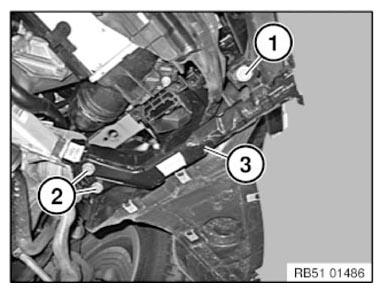

Release screw (1).
Tightening torque 51 11 6AZ .
Unfasten screws (2).
Tightening torque 51 11 8AZ .
Remove deformation element (3).
