51 11 185 Removing And Installing/Replacing Side Grille For Bumper Trim

Necessary preliminary tasks

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release catches (1) on bumper trim (2).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

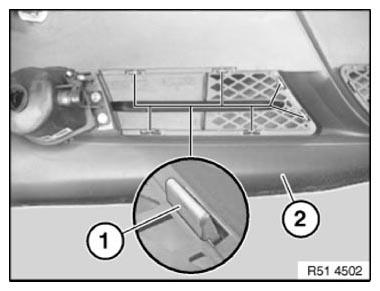

Fig 1: Catches On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
