51 11 180 Removing And Installing/Replacing Center Grille For Bumper Trim

Necessary preliminary tasks

• Remove FRONT BUMPER TRIM

Version with ACC:

• Remove COVER FOR ACC SENSOR

Release catches (1) on bumper trim (2).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

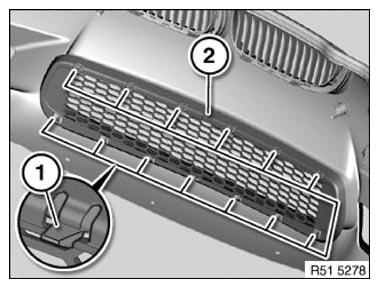

Fig 1: Catches On Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

• Remove FRONT BUMPER TRIM

Release catches (1) and remove center grille (2).

Installation:

Catches (1) must not be damaged

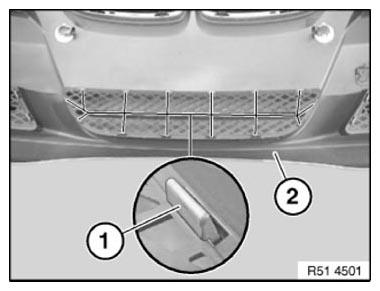

Fig 1: Catches And Center Grille

Courtesy of BMW OF NORTH AMERICA, INC.
