51 11 157 Replacing Front Bumper Trim

Necessary preliminary tasks:

• Remove front BUMPER TRIM
• Remove FRONT GRILLE CENTER SECTION
• If necessary, remove NUMBER/LICENSE PLATE HOLDER
• Remove MIDDLE GRILLE
• If necessary, remove COVER FOR HEADLIGHT WASHER SYSTEM
• Remove cover cap for tow lug

Version with Park Distance Control (PDC):

• Remove ultrasonic transducer  . See 66 20 518 REMOVING AND INSTALLING/REPLACING A FRONT ULTRASONIC SENSOR (OUTER) (PARK DISTANCE CONTROL) or 66 20 520 REMOVING AND INSTALLING/REPLACING A FRONT (INNER) ULTRASONIC SENSOR (PARK DISTANCE CONTROL)

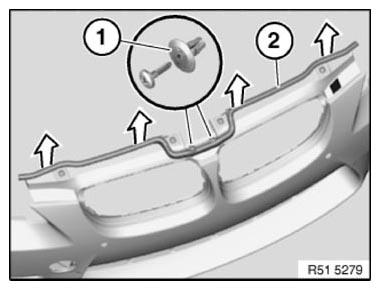

Release expander rivets (1) and pull off seal (2) upwards in direction of arrow.

Installation:

If necessary, replace faulty expander rivets (1).

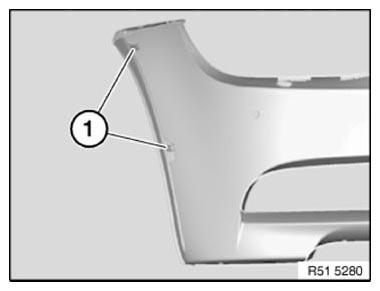

Remove sheet metal nuts (1) on left/right.

Installation:

If necessary, replace faulty metal nuts (1).

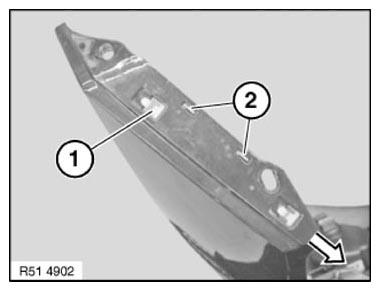

Press down catches (2) on insert (1) and remove insert (1) in direction of arrow.
