51 11 055 Removing And Installing/Replacing Support For Front Bottom Bumper Panel
Necessary preliminary work
- Remove front bumper panel . See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM or 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM

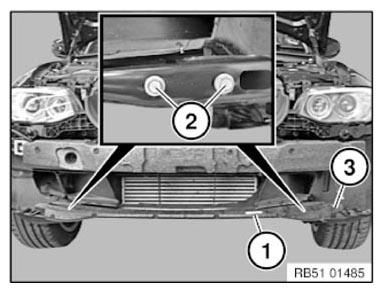

Remove impact absorber (1).
Mark top side on support (3).
Release screws (2) and remove support (3).
Tightening torque 51 11 5AZ .
Installation note:
Install support (3) with marked side towards top.
