51 11 050 Removing And Installing/Replacing Support For Front Bumper Panel
IMPORTANT:

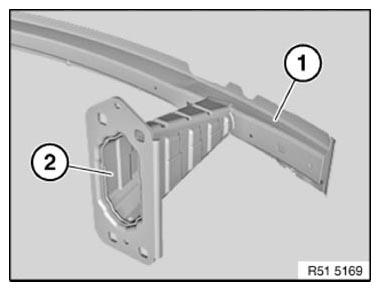

During replacement, all cavities in the support (1) and the crashbox (2) must be sealed using CAVITY PROTECTION
.
Necessary preliminary tasks
- Remove front BUMPER PANEL
- Remove left/right fanfare . See 61 33 055 REMOVING AND INSTALLING/REPLACING RIGHT FANFARE HORN or 61 33 050 REMOVING AND INSTALLING/REPLACING LEFT FANFARE HORN

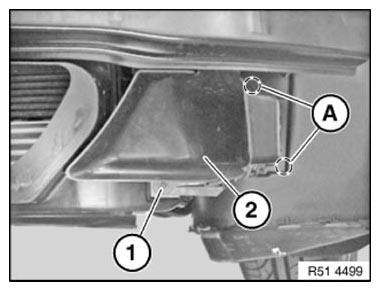

Release screw (1) on cooling air routing (2) on left and right.
Depending on the engine version, release the screws in area (A).
Remove cooling air routing (2) on left and right.
NOTE:
The work scope ends here:
"Removing and installing cooling air routing".
"Removing and installing cooling air routing".

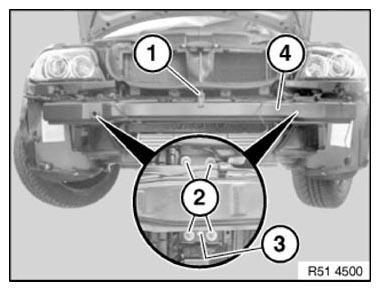

Release screw (1).
Release nuts (2) and blind rivets (3).
Installation note:
Blind rivets (3) are not re-used.
If necessary thread out cable and remove support (4).
Tightening torque 51 11 2AZ .
