Laying cutting wire around window glass

IMPORTANT: Make sure the cutting wire is located at all four corner points below the window glass.
Check that the cutting wire is not caught on clamps or body.
Secure window glass on outside with adhesive tape against sliding.

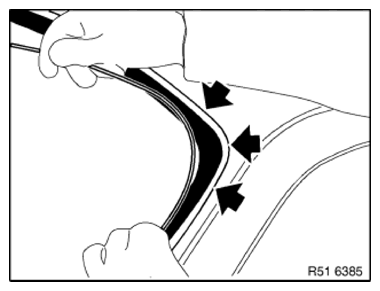

Fig 1: Laying Cutting Wire Around Window Glass
G09850956Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Window glass (1) with installed seals (3) or moulded-on surrounds:
  • Moisten cutting wire (4) and seals (3) on window glass (1) with water
  • Insert cutting wire (4) in bend (without kinking) between window glass (1) and body aperture (2)

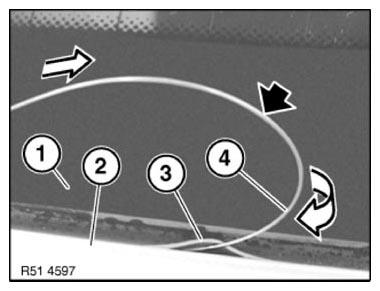

Fig 2: Inserting Cutting Wire In Bend (Without Kinking) Between Window Glass And Body Aperture
G09850957Courtesy of BMW OF NORTH AMERICA, INC.
