Replacement of rubber frame without windscreen removal
Clean cutout.

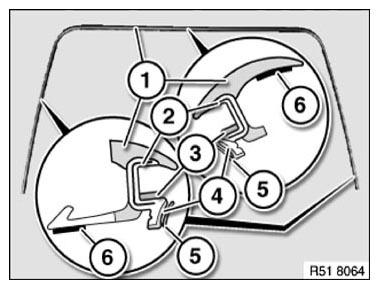

Detach tear-off lip (5) from rubber frame (1).
If adhesive leaks over tear-off lip (5) at bridge (4), this area must be cut out partially.
To facilitate installation, coat rubber frame (1) and body cutout with water.
Fit rubber frame (1), paying attention to center marking on rubber frame (1) and windscreen.
If necessary, pull liner* off adhesive tape (6) and press rubber frame (1) down firmly on roof outer skin and A-pillar.
*Liner is the protective film on the adhesive tape
