Replacement of rubber frame with removed or new windscreen

Pay attention to center marking on rubber frame (1) and windscreen.

Fit rubber frame (1) with tear-off lip (5).

  1. 2 Aluminum strip
  2. 3 Butyl

After installing windscreen, pull liner* off adhesive tape (6) and press rubber frame (1) down firmly on roof outer skin and A-pillar.

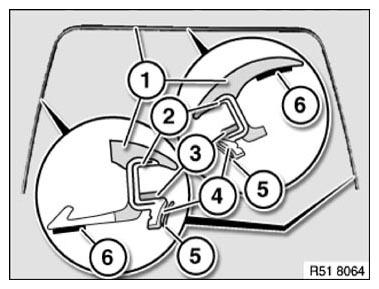

Fig 1: Replacing Of Rubber Frame With Removed Windscreen
G09850978Courtesy of BMW OF NORTH AMERICA, INC.

*Liner is the protective film on the adhesive tape
